Triac - High Current

bizmaker 2021. 4. 6. 14:50

고전류용 트라이악(TRIAC, 양방향성고전류용 트라이악(TRIAC, 양방향성)



Model Spec. Remarks Image
MCMA650MT1800NKD I_t(RMS): 650A
V_G: 2V
Y1-2-CU		 IXYS

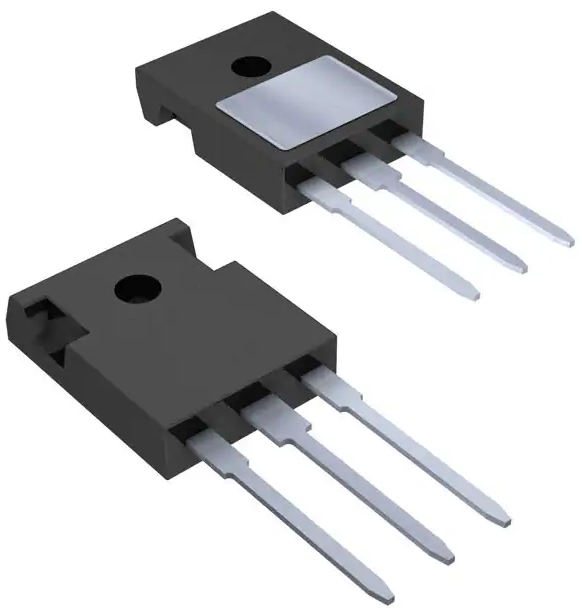

CLA80MT1200NHR I_t(RMS): 88A
V_G: 1.7V
V_OFF: 1.2kV
TO247-3		 IXYS

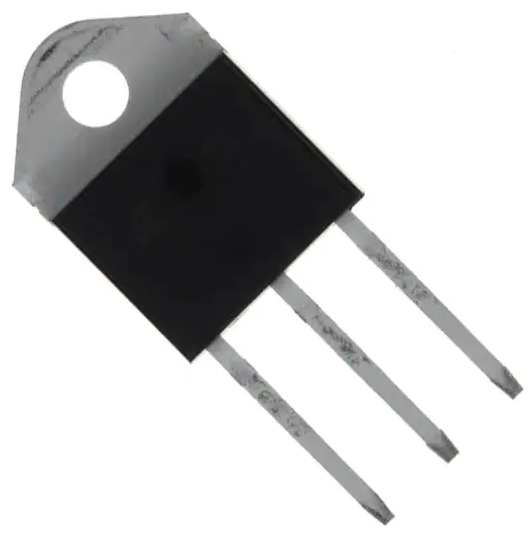

BTA45-800BQ I_t(RMS): 45A
V_G: 1.3V
V_OFF: 800V
TO3P-3, SC65-3		 WeEn Semiconductors

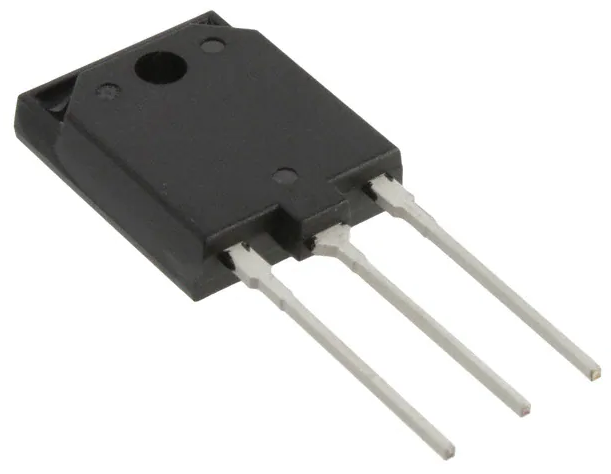

BCR40RM-12LB#B00 I_t(RMS): 40A
V_G: 2.5V
V_OFF: 600V
TO-3PFM, SC93-3		 Renesas Electronics America Inc.

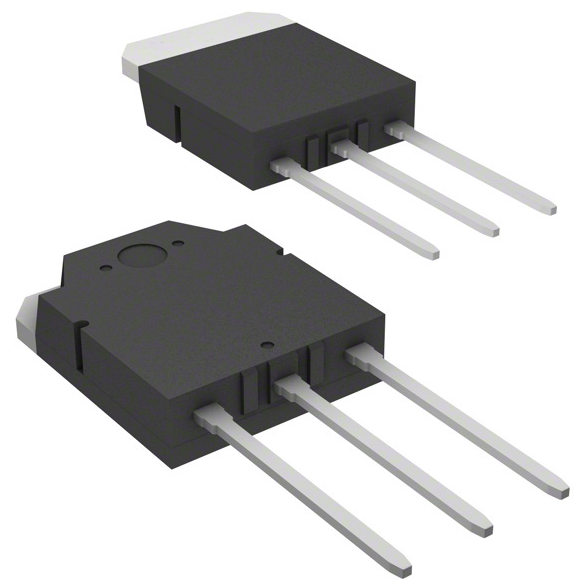

TPDV1240RG I_t(RMS): 40A
V_G: 1.5V
V_OFF: 1.2kV
TOP-3		 STMicroelectronics

en.CD00292203.pdf
0.19MB
bta45-800b.pdf
0.39MB
CLA80MT1200NHR.pdf
0.41MB
