[BiliMon] Bilient Monitor with Low Current
bizmaker 2024. 6. 7. 06:00Isolated(insulated) voltage and current monitor both locally and remotely
Overview
Error(accuracy), nonlinearity and noise levels below 0.1%
Item | Information | Option | Remarks |
Communication | I2C with 5.0VDC | R49(0.0 ohm) | Using C31 in 'Central' module only |
Connectors | CN51 : Source#1 CN52 : Load#1 CN61 : Source#2 CN62 : Load#2 |
YH396-02V | |
Voltage ragne | -100 ~ +100 V | R54 or R64 : 20k ohm/B | Channe#1 & Channel#3 |
-200 ~ +200 V | R54 or R64 : 10k ohm/B | Channe#1 & Channel#3 | |
-400 ~ +400 V | R54 or R64 : 4.99k ohm/B | Channe#1 & Channel#3 | |
Current range | -200 ~ +200 mA | R59 or R69 : 1.0 ohm/B | Channel#2 & Channel#4 |
-1,000 ~ +1,000 mA | R59 or R69 : 0.2 ohm/B | Channel#2 & Channel#4 | |
-2,000 ~ +2,000 mA | R59 or R69 : 0.1 ohm/B | Channel#2 & Channel#4 | |
PCB Layout

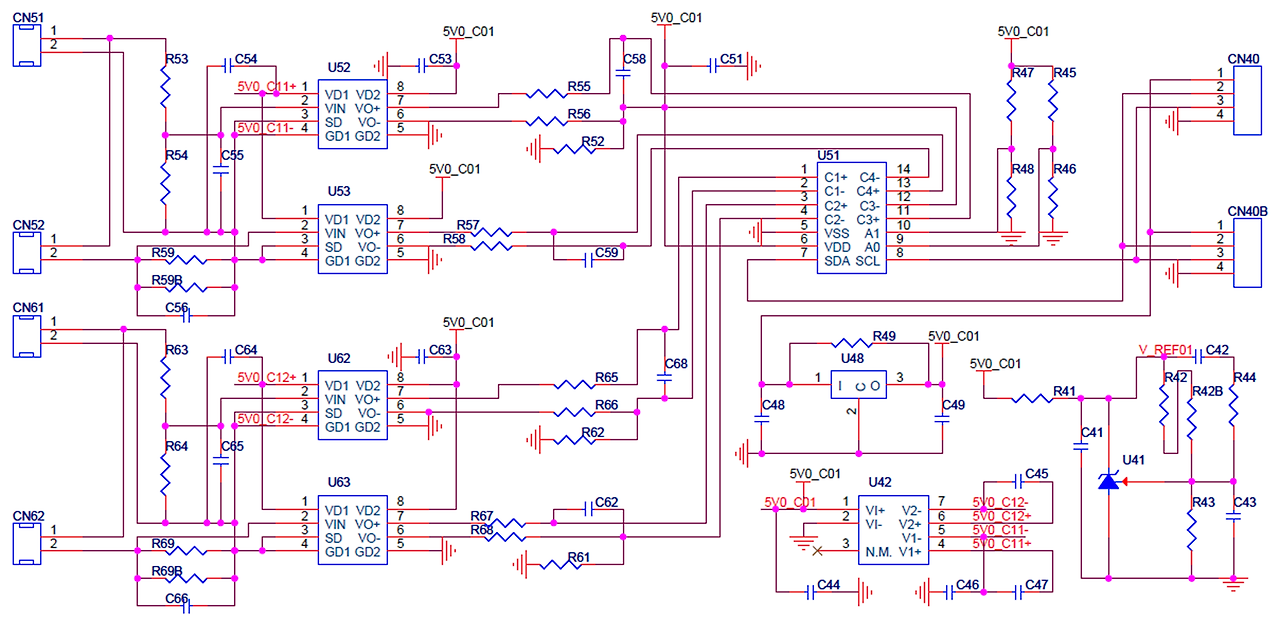

Schematic(NoValue)
