[BiliMon] Bilient Monitor with AC & DC Powers
bizmaker 2024. 6. 6. 06:00Isolated(insulated) voltage and current monitor both locally and remotely
Overview
Error(accuracy), nonlinearity and noise levels below 0.1%
Item | Information | Option | Remarks |
Communication | I2C with 6.8VDC | U48(KIA7805) | Using CN11 from 'Central' Module |
Connectors | CN51 : AC Source#1 CN52 : Load#1 CN61 : DC Source#2 CN62 : Load#2 |
||
Voltage ragne | -100 ~ +100 V | R54 or R64 : 20k ohm/B | Channe#1 & Channel#3 |
-200 ~ +200 V | R54 or R64 : 10k ohm/B | Channe#1 & Channel#3 | |
-400 ~ +400 V | R54 or R64 : 4.99k ohm/B | Channe#1 & Channel#3 | |
Current range | -200 ~ +200 mA | R59 : 1.0 ohm/B | Channel#2 |
-1,000 ~ 1,000 mA | R59 : 0.2 ohm/B | Channel#2 | |
-5.0 ~ +5.0 A | U63 : ...05B | Channel#4 | |
-20.0 ~ +20.0 A | U63 : ...20A | Channel#4 | |
PCB Layout

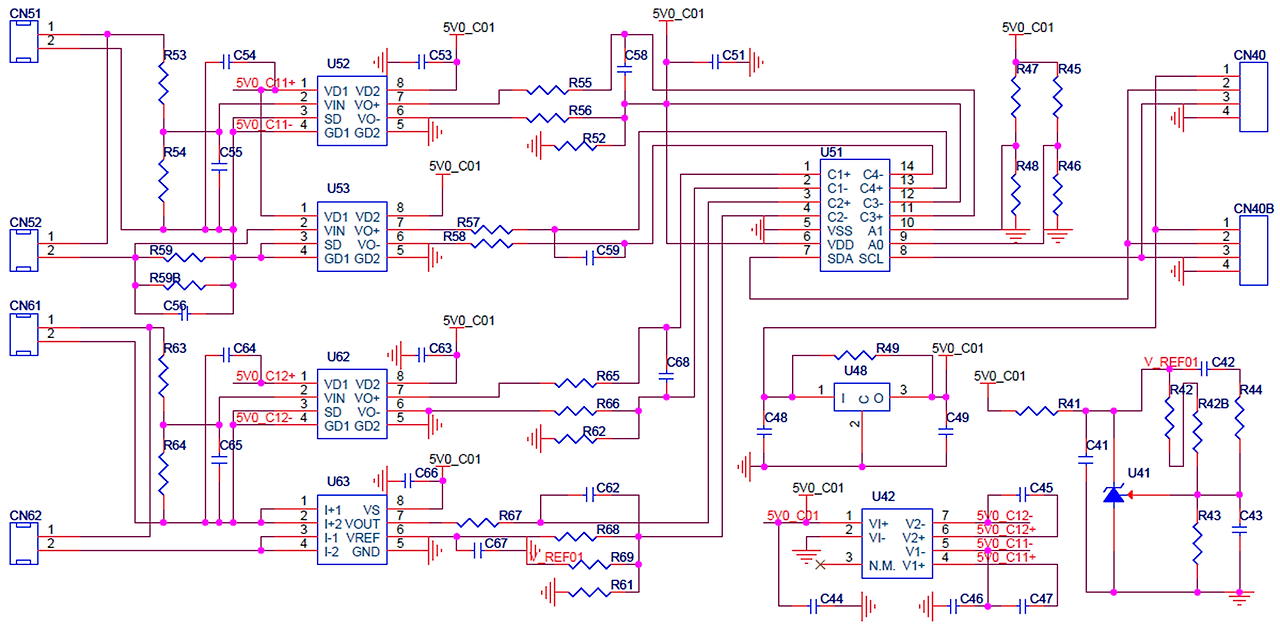

Schematic(NoValue)
