DC/DC Converter Example - LM2594

• I_Out : 500mA
• V_In,max : 60V
• V_Out : 3.3V, 5V, 12V

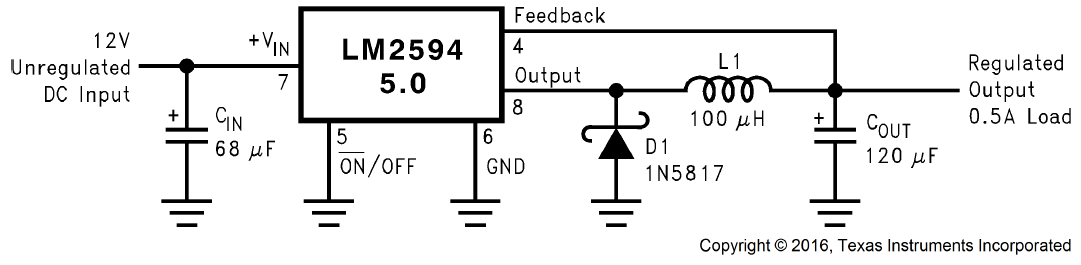

Typical Application

Product Attributes [Link]

Category	Integrated Circuits (ICs) PMIC - Voltage Regulators - DC DC Switching Regulators
Mfr	Texas Instruments
Series	SIMPLE SWITCHER®
Package	Tube
Part Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	60V
Voltage - Output (Min/Fixed)	12V
Voltage - Output (Max)	-
Current - Output	500mA
Frequency - Switching	150kHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-PDIP
Base Product Number	LM2594
