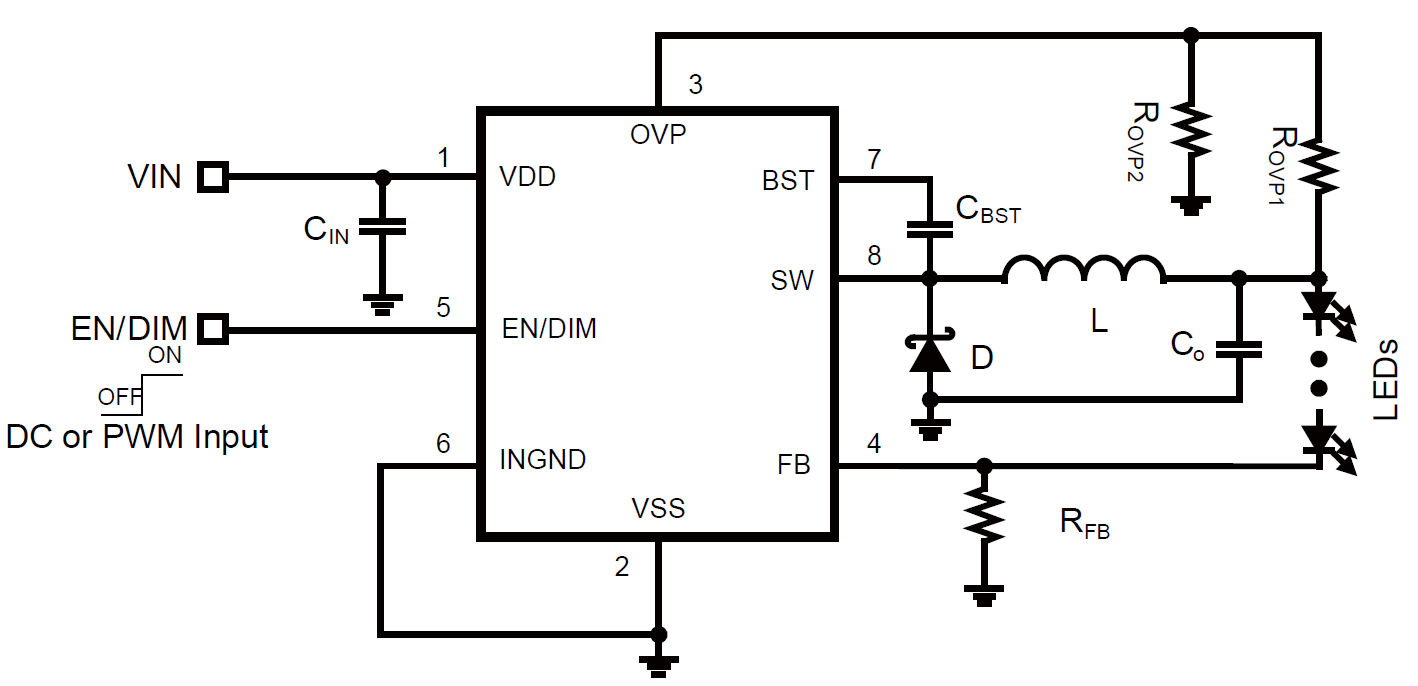

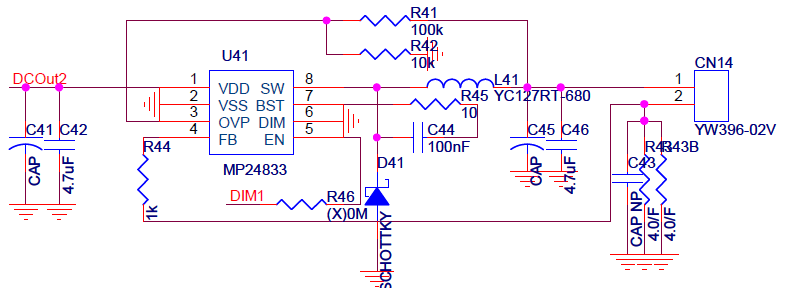

- 벅(Buck) 드라이버
Product Attributes [Link]
| Category | Integrated Circuits (ICs) PMIC - LED Drivers |
|
| Mfr | Monolithic Power Systems Inc. | |
| Series | - | |
| Package | Tube | |
| Part Status | Not For New Designs | |
| Type | DC DC Regulator | |
| Topology | Step-Down (Buck), Step-Up (Boost) | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 1 | |
| Voltage - Supply (Min) | 4.5V | |
| Voltage - Supply (Max) | 55V | |
| Voltage - Output | - | |
| Current - Output / Channel | 3A | |
| Frequency | 200kHz | |
| Dimming | Analog, PWM | |
| Applications | Automotive, Backlight | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | |
| Supplier Device Package | 8-SOIC-EP | |
| Base Product Number | MP24833 |
