SCR - Extremely High Current

bizmaker 2021. 3. 25. 13:51

특고전류용 SCR



Model Spec. Remarks Image

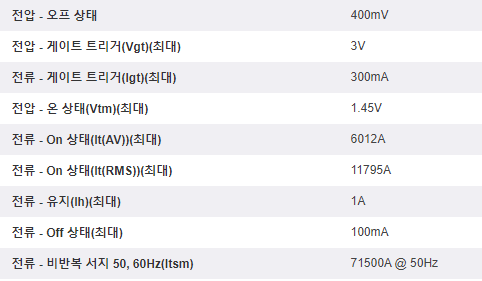

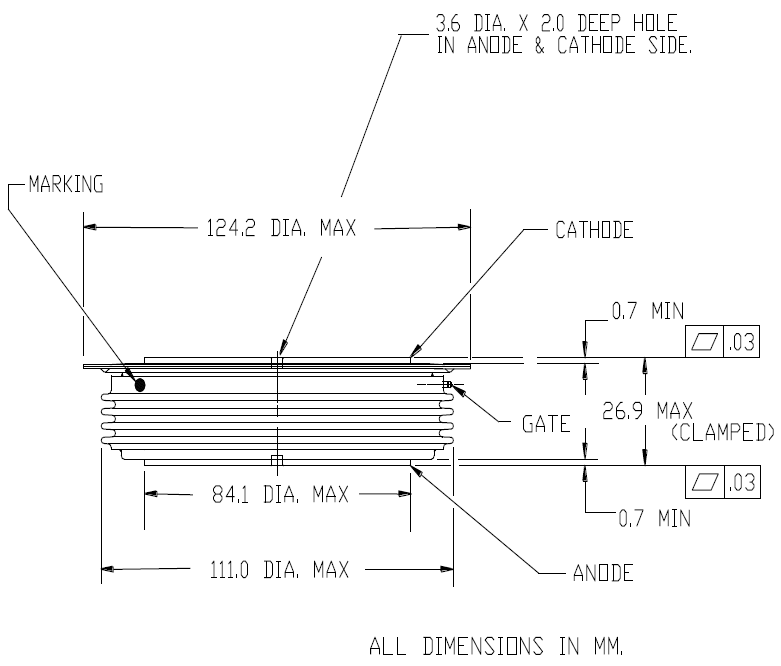

N6012ZD040 I_t(RMS): 11795A
V_tm: 1.45V
I_h: 1A		 IXYS
TDS4264002DH I_t(RMS): 7383A
V_tm: 1.38V		 Powerex Inc.

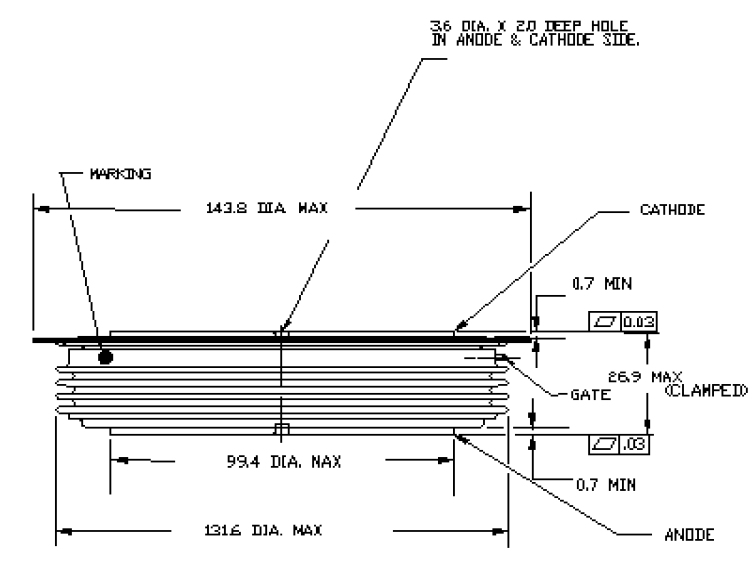

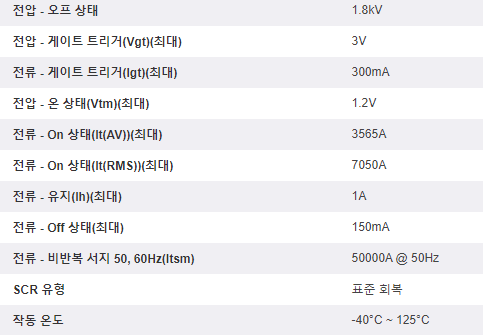

N3565HA180 I_t(RMS): 7050A
V_tm: 1.2V
I_h: 1A		 IXYS
TCS436340HDH I_t(RMS): 6480A
V_tm: 1.8V		 Powerex Inc.
ST3230C10R0 DISCONTINUED Vishay
