PCBs for BiliMon Modules with Precision

bizmaker 2024. 8. 24. 16:08

BiliMon248PrcModules

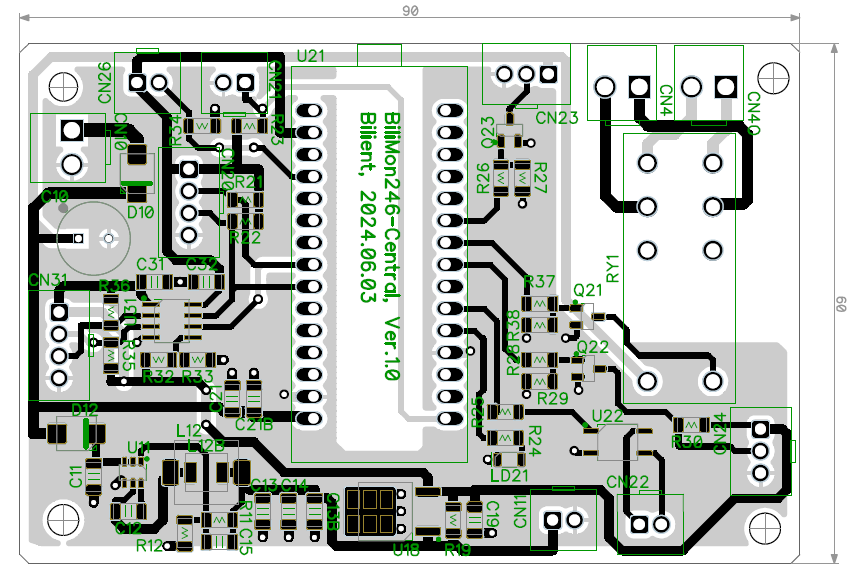

[Central Module]

  • BiliMon246-Central, 2024.06.03
  • 90x60 mm

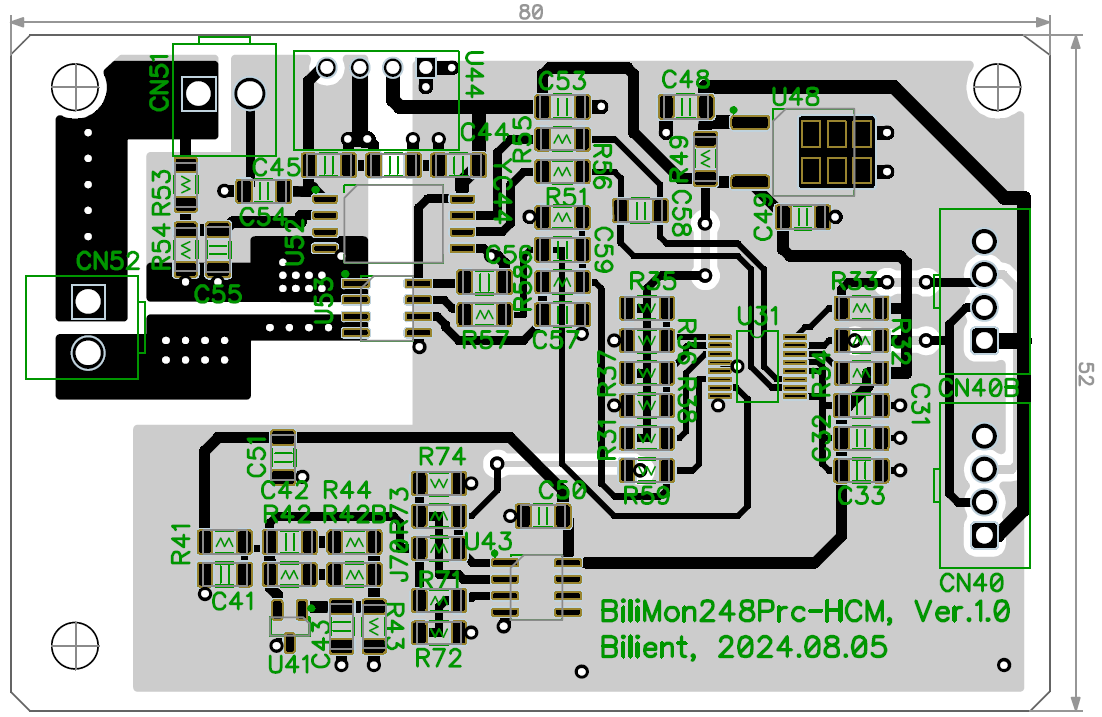

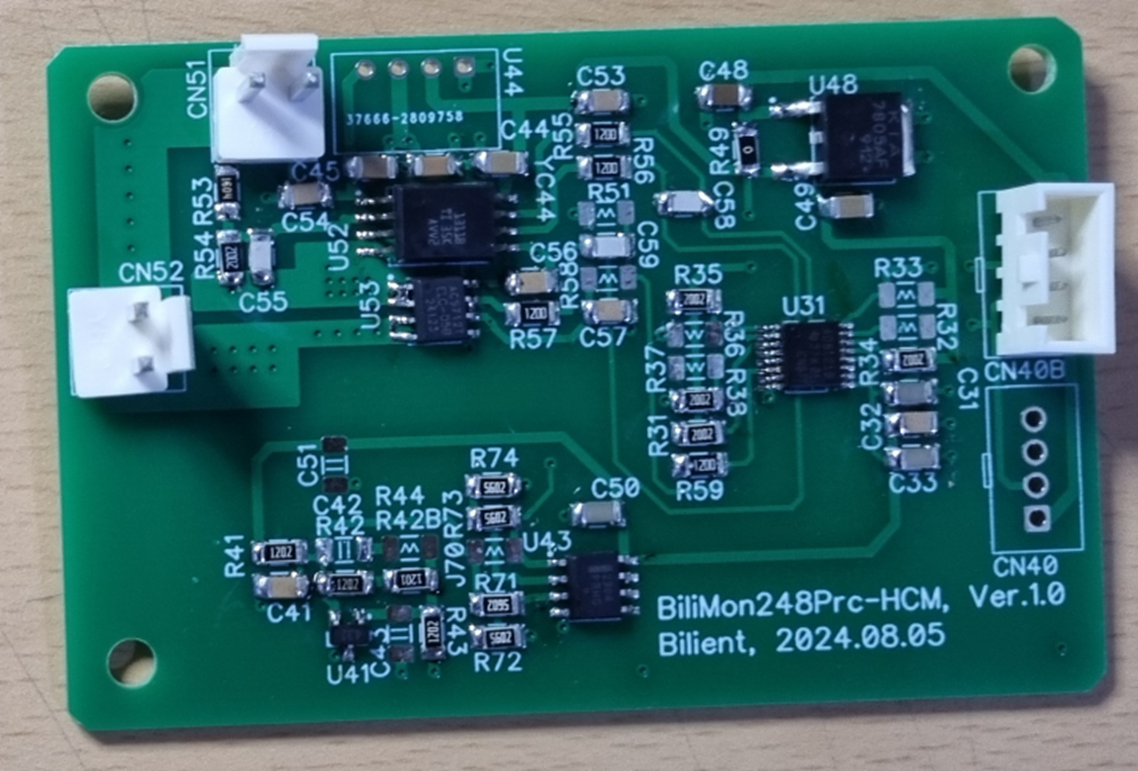

[High Current Module]

  • BiliMon248Prc-HCM, 2024.8.05
  • 80x52 mm

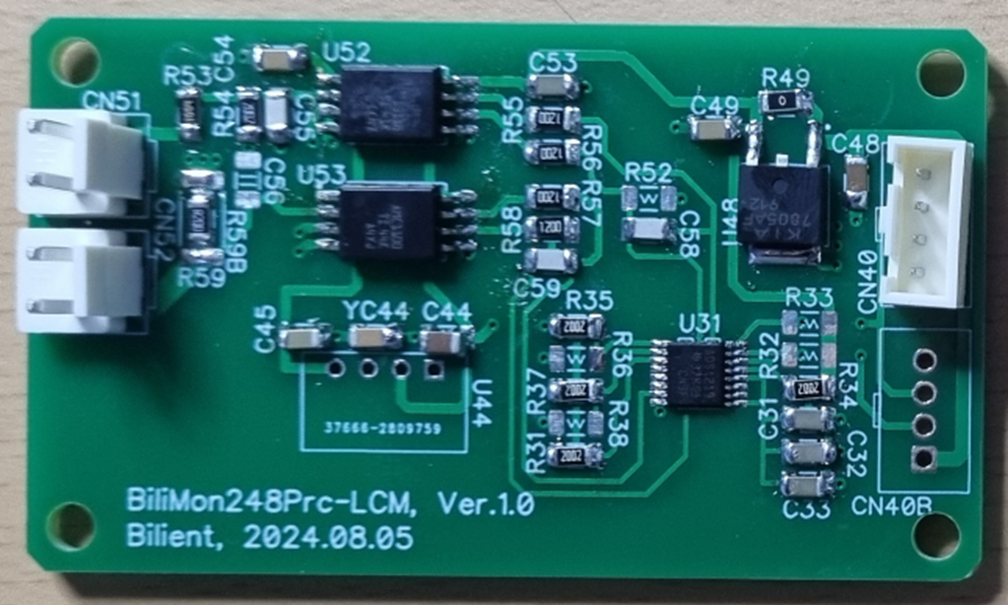

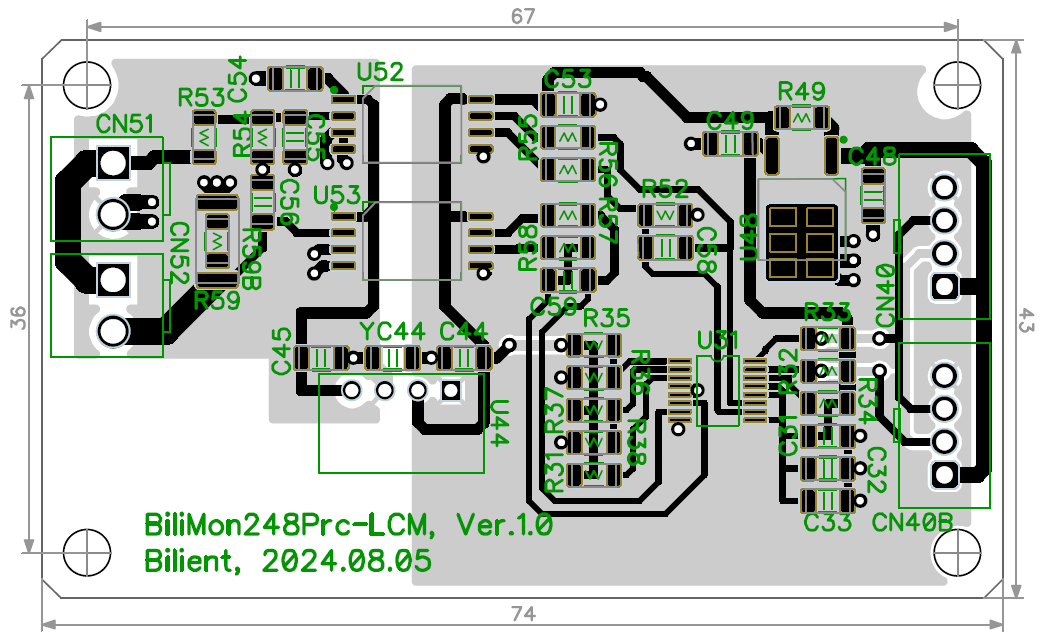

[Low Current Module]

  • BiliMon248Prc-LCM, 2024.08.05
  • 67x43 mm
