PCBs for BiliMon Modules, the Second Edition

bizmaker 2024. 8. 24. 15:59

BiliMon248Modules

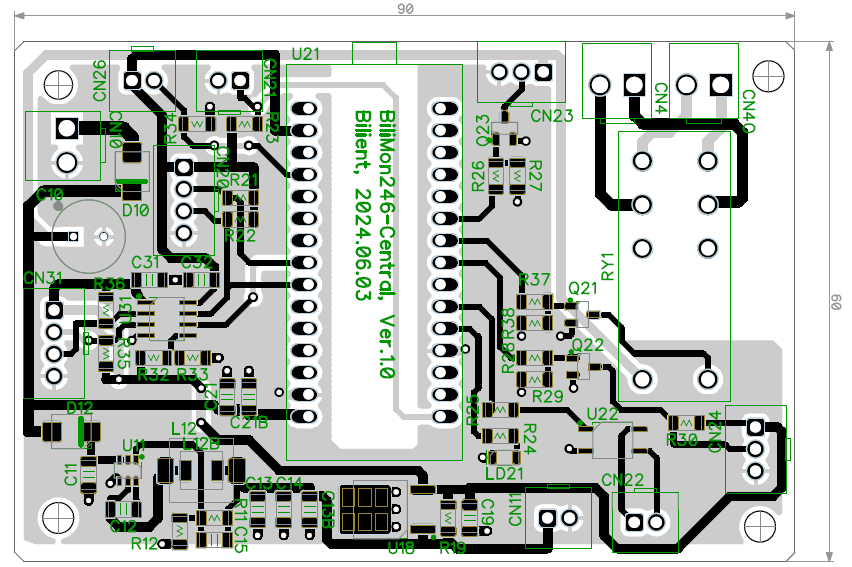

[Central Module]

  • BiliMon246-Central, 2024.06.03
  • 90x60 mm

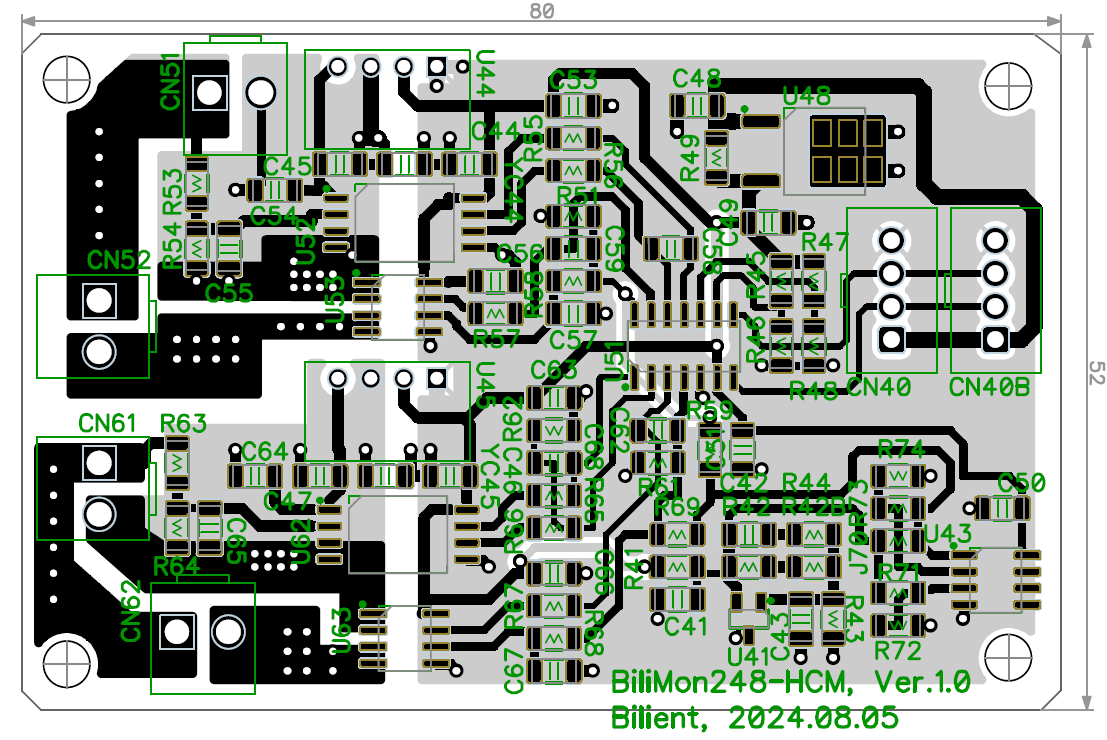

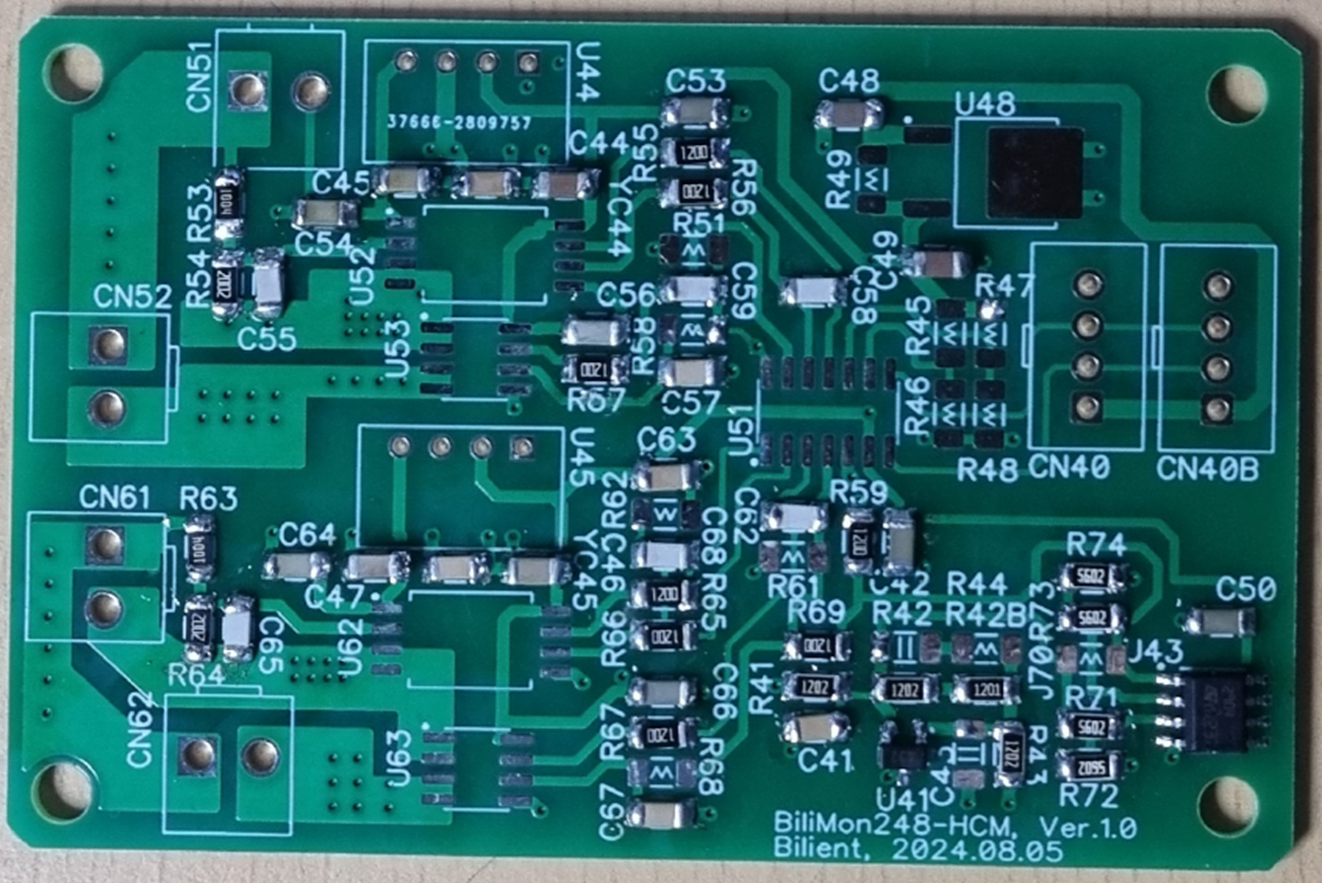

[High Current Module]

  • BiliMon248-HCM, 2024.08.05
  • 80x52 mm

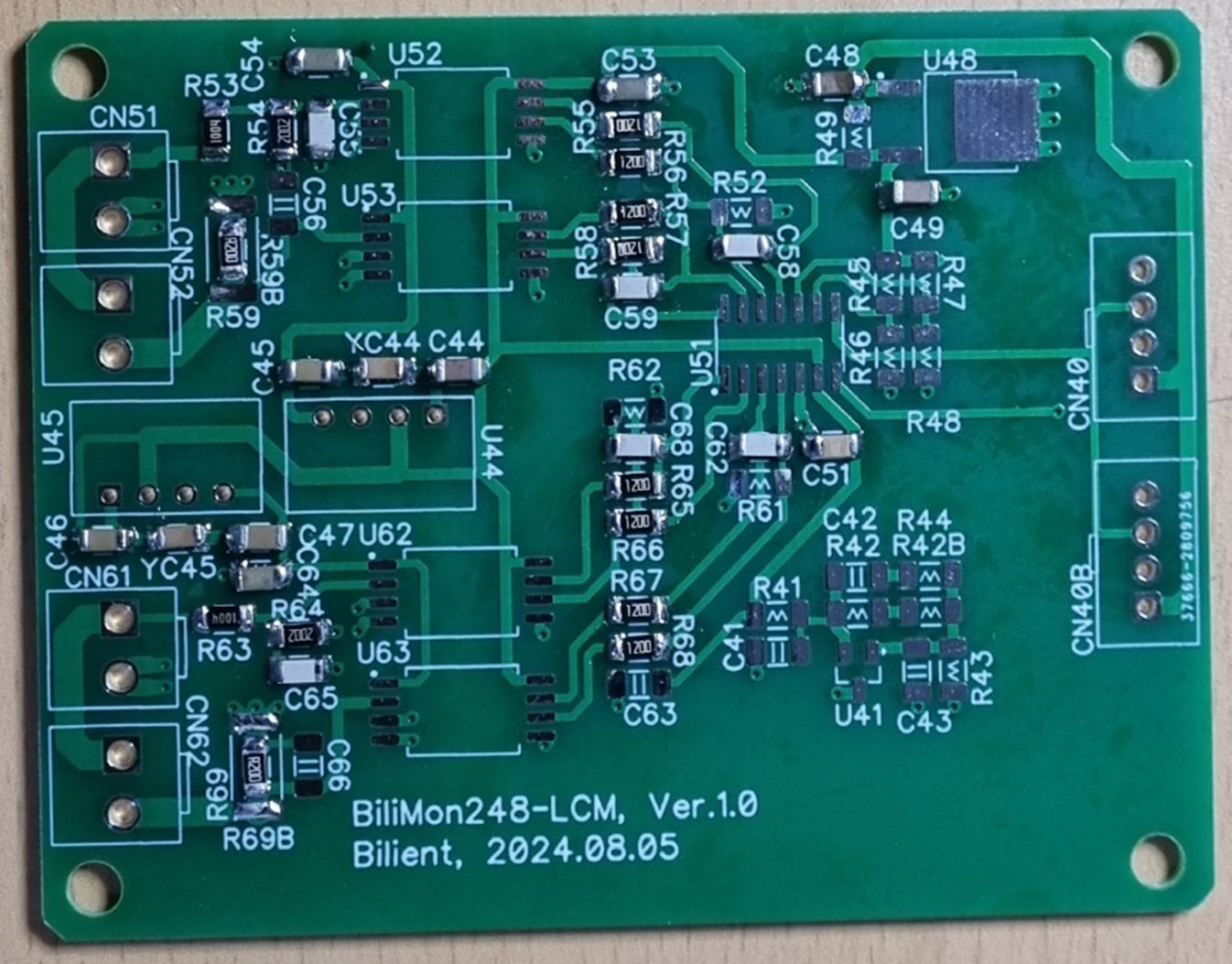

[Low Current Module]

  • BiliMon248-LCM, 2024.08.05
  • 80x62 mm
