고전류용 IGBT(Insulated Gate Bipolar Transistor)
| Model | Spec. | Remarks | Image |

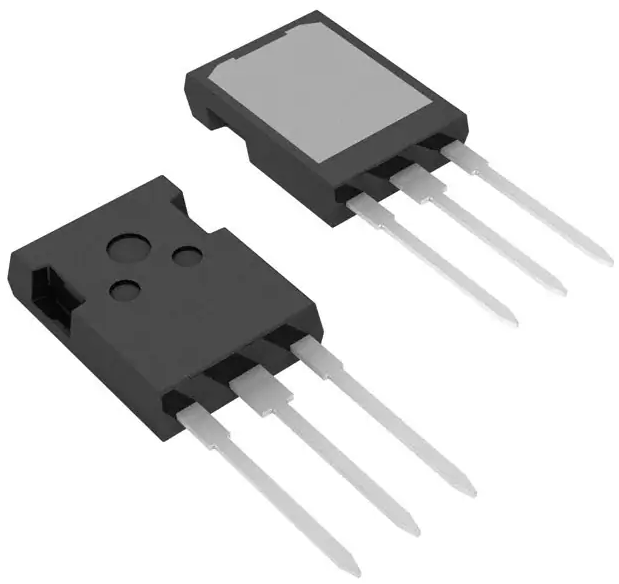

| IXXX300N60B3 | I_C: 550A V_C: 600V P_max : 2300W TO247-3 |
IXYS |  |

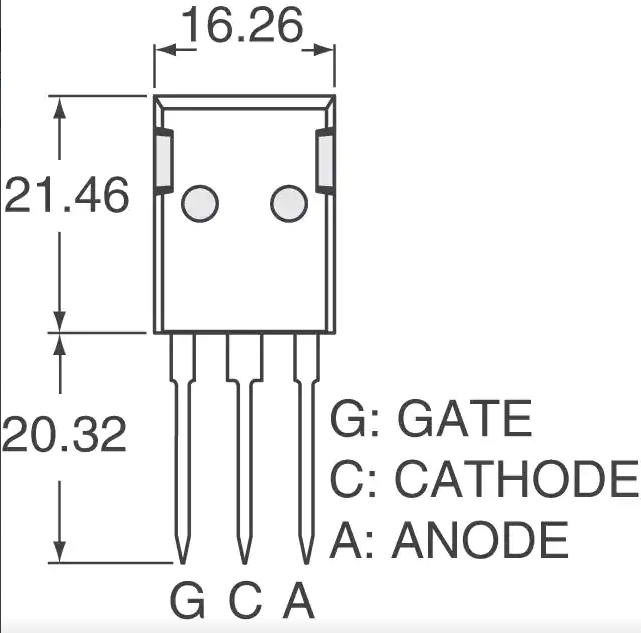

| IXYX140N120A4 | I_C: 480A V_C: 1200V P_max : 1500W TO247-3 |
IXYS |  |

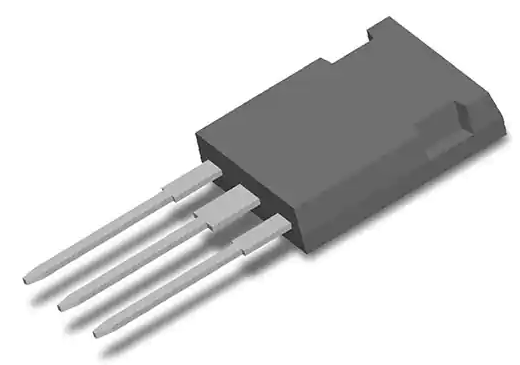

| IXGX400N30A3 | I_C: 400A V_C: 300V P_max : 1000W TO247-3 |
IXYS | |
| APT200GN60B2G | I_C: 283A V_C: 600V P_max : 682W TO247-3 |
Microchip Technology |  |
| AFGY160T65SPD-B4 | I_C: 240A V_C: 650V P_max : 882W TO247-3 |
ON Semiconductor |
AFGY160T65SPD-B4-D.PDF
2.52MB
Littelfuse_Discrete_IGBTs_PT_IXG_400N30A3_Datasheet.PDF.PDF
0.29MB
IXYX140N120A4_DS.pdf
0.59MB
Littelfuse_Discrete_IGBTs_XPT_IXX_300N60B3_Datasheet.PDF.PDF
0.22MB
