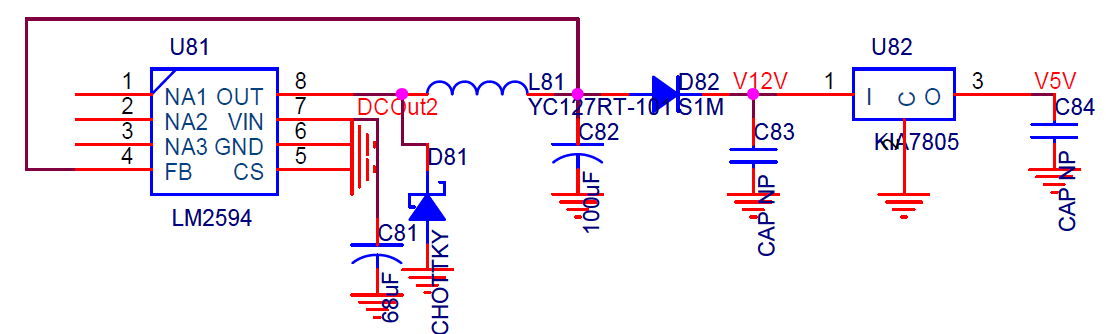

DC/DC Converter Example - LM2594
inhae
2021. 6. 28. 16:58
- I_Out : 500mA
- V_In,max : 60V
- V_Out : 3.3V, 5V, 12V
Product Attributes [Link]
| Category | Integrated Circuits (ICs) PMIC - Voltage Regulators - DC DC Switching Regulators |
|
| Mfr | Texas Instruments | |
| Series | SIMPLE SWITCHER® | |
| Package | Tube | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Fixed | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 60V | |
| Voltage - Output (Min/Fixed) | 12V | |
| Voltage - Output (Max) | - | |
| Current - Output | 500mA | |
| Frequency - Switching | 150kHz | |
| Synchronous Rectifier | No | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP (0.300", 7.62mm) | |
| Supplier Device Package | 8-PDIP | |
| Base Product Number | LM2594 |
