저전압(~10V)용 LED 드라이버 IC
| Model | Type | Input Output |
Remakrks |
| AP3602AKTR-G1-ND | Boost SOT23-6 1.2MHz |
In : 2.7~5V Out : 4.8~5.2V, 100mA |
 |
| IS31BL3508A-STLS2-TR-ND | Boost SOT23-6 1MHz |
In : 2.7~5.5V Out: 1.6A(sw) |
 |
| AP5726WUG-7DI-ND | Boost SOT23-6 1.2MHz |
In : 2.7~5.5V Out: 750mA(sw) |
 |
| AP5724WUG-7DI-ND | Boost SOT23-6 1.2MHz |
In : 2.7~5.5V Out: 750mA(sw) |
 |

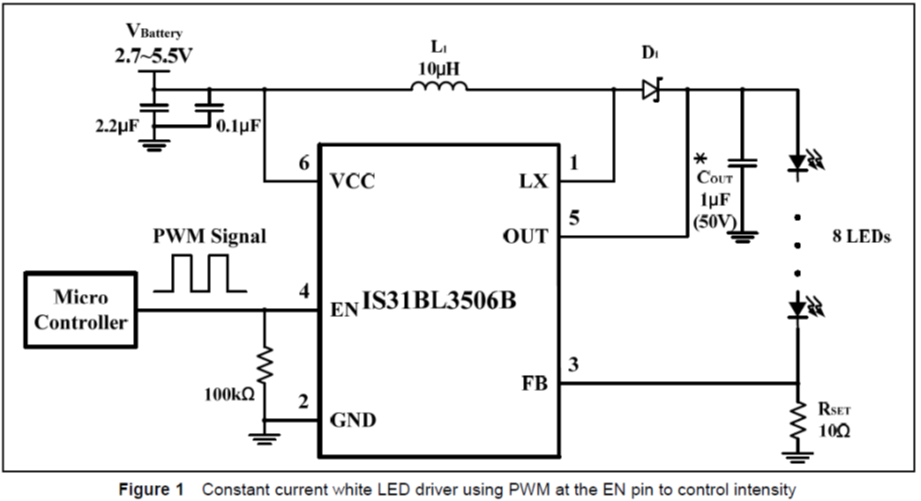

| IS31BL3506B-TTLS2-TR-ND | Boost SOT23-6 1MHz |
In : 2.7~5.5V Out: 2.2A(sw) |
 |

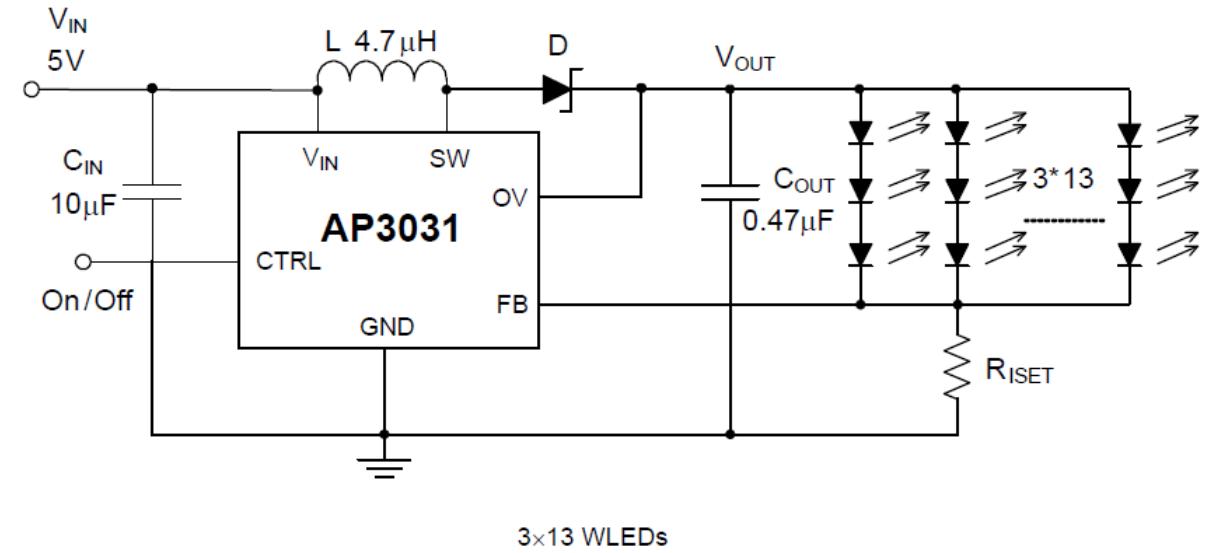

| AP3031KTR-AG1DI-ND | Boost SOT23-6 1MHz |
In : 2.7~16V Out: 1.4A(sw) |
 |
| MP3331GC-Z-ND | In : 2.7~5.5V Out: 2.0A |
||
| AP3032KTR-G1DITR-ND | In : 2.7~9V Out: 1.4A(sw) |
||
| MP3307GJ-Z-ND | Boost SOT23-8 2.22MHz |
In : 2.7~5.5V Out: 1.6A |
|
| PAM2841SRDITR-ND | Boost TSSOP-8, MSOP-8 1MHz |
In : 2.7~5.5V Out: 40V, 1.5A |
